Introduction
During a software architecture report redaction, i was confronted to a major problem : I would generated some UML diagrams as « Use Case », « Class Diagram » and « Activity Diagram » but i didn’t have tools as Microsoft Office Visio or equivalent installed on my laptop. So i searched web tools to generate these diagrams easily.
What i found ?
First website i found was Web Sequence Diagram: [www.websequencediagrams.com][1]
Second website i found was yUML: [yuml.me][2]
Third website i found was KangaModeling: [kangamodeling.org][3]
Why these tools are powerful ?
1. Scriptable
These tools allow to describe what we want with a script language.
**Example with Web Sequence Diagram Tool **: ** **
# Show Action with RoR
Browser->URL Routing : GET
URL Routing->Controller : show Action
Controller -> Model : find ( params[id] )
Model -> Controller : trigger
Controller -> Controller : Lookup Show View
Controller -> View : Render ( Show View, trigger )
View -> Model : getData()
Model -> Trigger (Physical Element) : request() : SNMP / SOAP / XMLRPC / …
Trigger (Physical Element) -> Model : response : XML / JSON / …
Model -> View : data

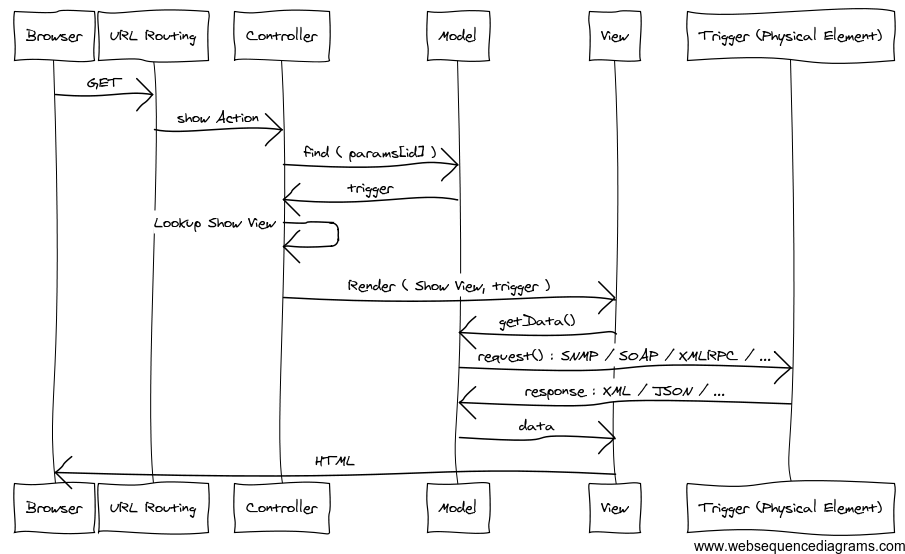

View->Browser : HTMLActivity diagram image generated :
**Example with Web Sequence Diagram Tool **: ****
[User]-(Show a monitor)
[User]-(Show monitor’s parameters)
[Administrator] - (Manage a monitor)
[Administrator] - (Manage users)
(Manage a monitor)>(Delete a monitor)
(Manage a monitor)>(Update a monitor)
(Manage a monitor)>(Add a monitor)
(Manage users)<(LDAP Active Directory)Use case diagram image generated :
2. Integration with other services
Both tools integrate an API.
They allow to integrate images in your website with just a GET or POST request.
Example with yUML :
https://yuml.me/diagram/class/[Customer]->[Billing Address]Will generate :
3. Universal
Implementation with other language is very easy.
Example with Python implementation :
import urllib
import re
def getSequenceDiagram( text, outputFile, style = ‘default’ ):
request = {}
request[“message”] = text
request[“style”] = style
request[“apiVersion”] = “1”
url = urllib.urlencode(request)
f = urllib.urlopen(“https://www.websequencediagrams.com/”, url)
line = f.readline()
f.close()
expr = re.compile(”(\?(img|pdf|png|svg)=[a-zA-Z0-9]+)”)
m = expr.search(line)
if m == None:
print “Invalid response from server.”
return False
urllib.urlretrieve(“https://www.websequencediagrams.com/” + m.group(),
outputFile )
return True
style = “qsd”
text = “alice->bob: authentication request\nbob–>alice: response”
pngFile = “out.png”
getSequenceDiagram( text, pngFile, style )4. Others skills
- Diagram generation by command line;
- Output formats as png, jpg, pdf, json;
- A lot of fork projects in different languages.
To resume, these tools will permit you to save time and energy. Exit graphic tools which are too much heavy, slow and onerous.
